A span type tells Laminar what kind of work a span represents. It controls how the span renders in the transcript view, whether it counts toward token and cost aggregations, and how it behaves in evaluations. Most auto-instrumentation sets the right type for you. When you write manual spans, especially for tool calls inside an agent loop, setting the type yourself is what turns a flat list of DEFAULT spans into a readable transcript.

​
Types you’ll actually set

Three span types cover the manual-instrumentation cases:
TypeWhen to use
DEFAULTAny function on your code path that isn’t a model call or a tool. This is the default.
LLMA manual LLM call where you want Laminar to pick up token counts and cost. See LLM Cost Tracking.
TOOLA function your agent invokes as a tool (get_weather, search_flights, book_flight, run_sql).
The other types (EXECUTOR, EVALUATOR, HUMAN_EVALUATOR, EVALUATION, CACHED) exist for the evaluations framework and for internal auto-instrumentation. You won’t set them by hand in day-to-day agent code.

​
Why TOOL matters for agent traces

The transcript view only renders the rows that describe what the agent did: the user input, LLM turns, and tool calls. DEFAULT spans don’t appear there (they live under Tree view). When you wrap tool functions with @observe but leave them as DEFAULT spans, the transcript shows only the LLM turns, as if the agent were thinking in a vacuum:

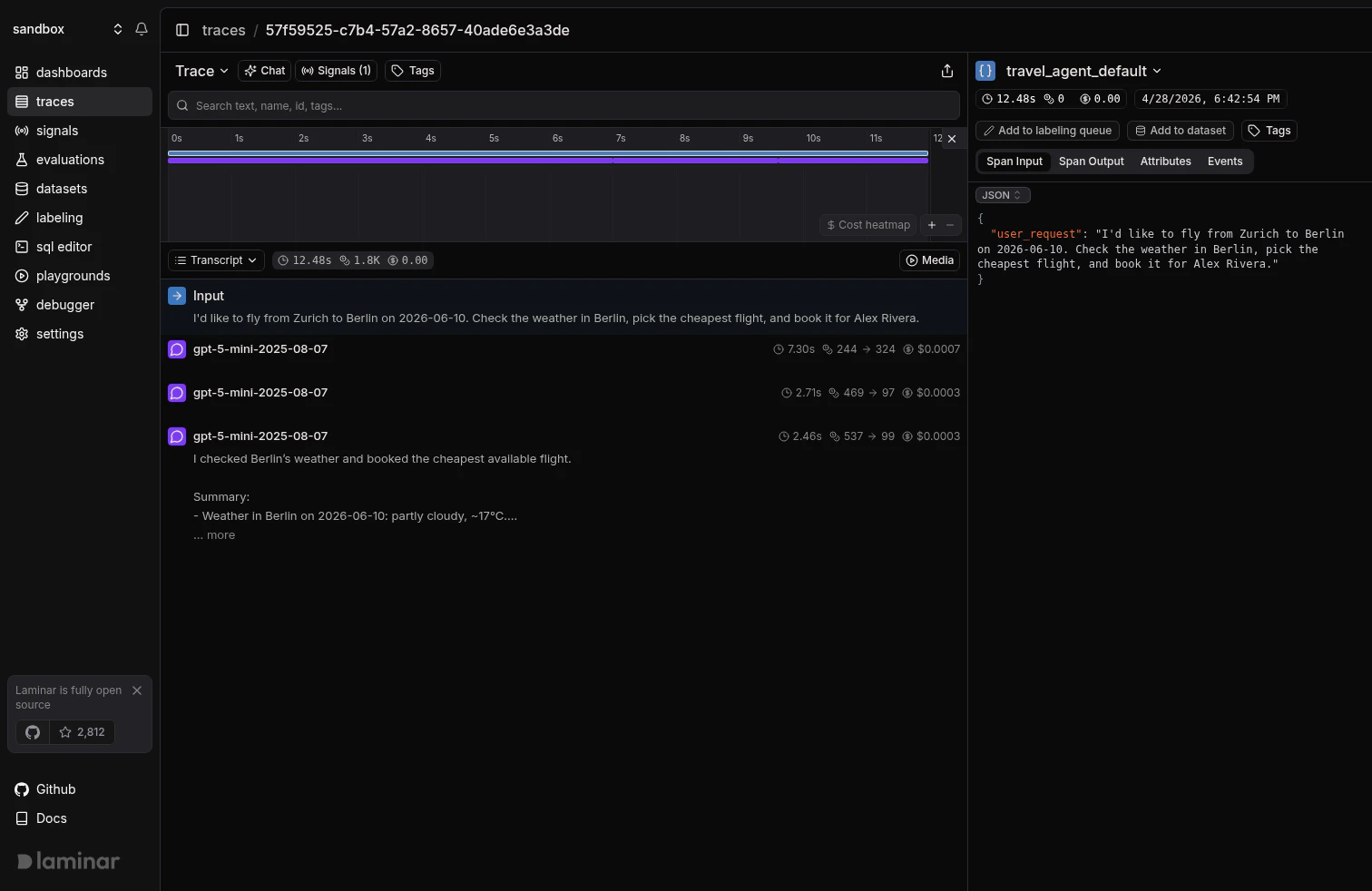

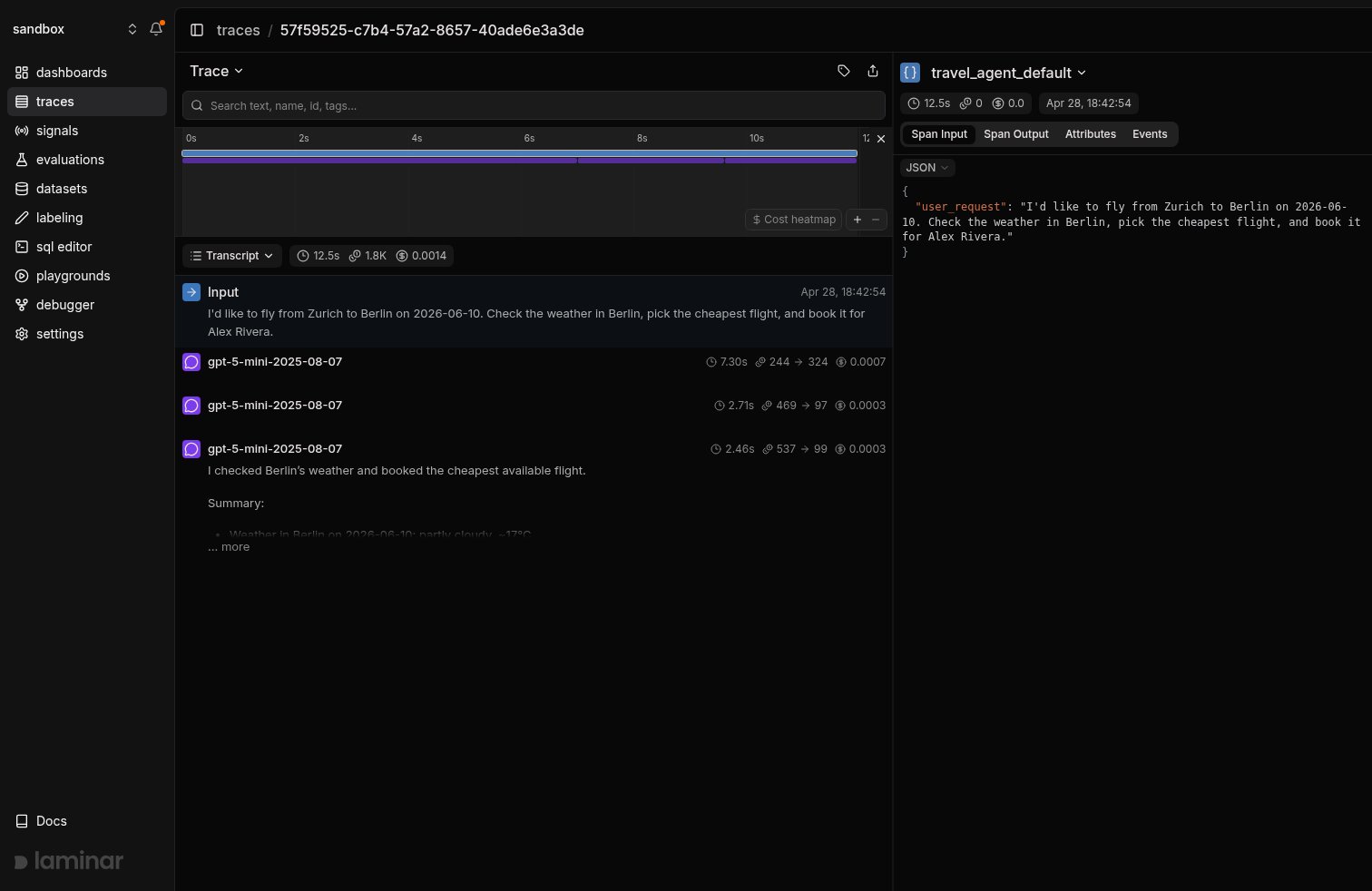

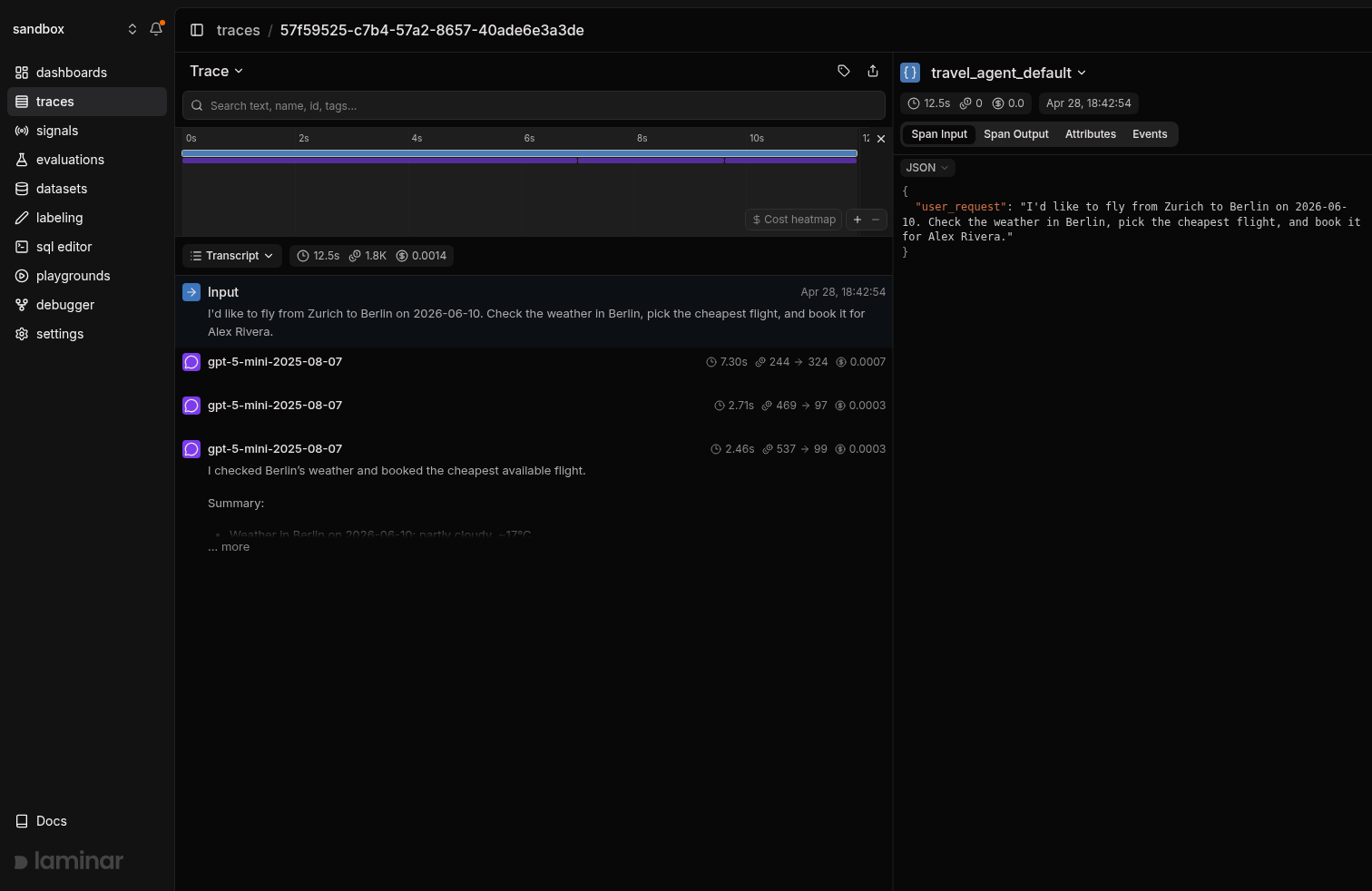

Travel agent trace with DEFAULT-typed tool functions: transcript shows only the three LLM turns and no tool rows.
Mark the same functions as TOOL and they interleave with the LLM turns, each with a bolt icon, the tool name, and an inline preview of the arguments:

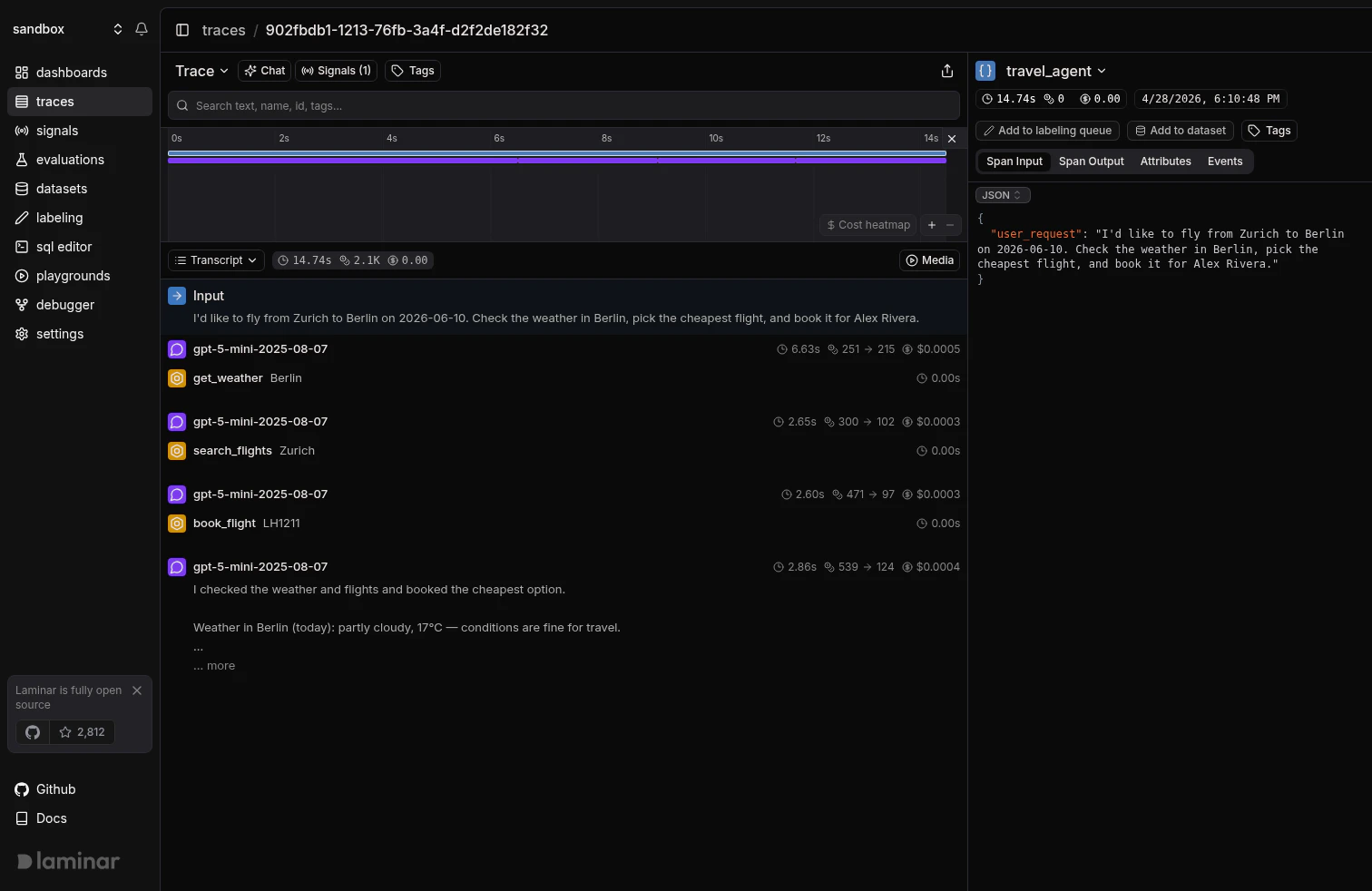

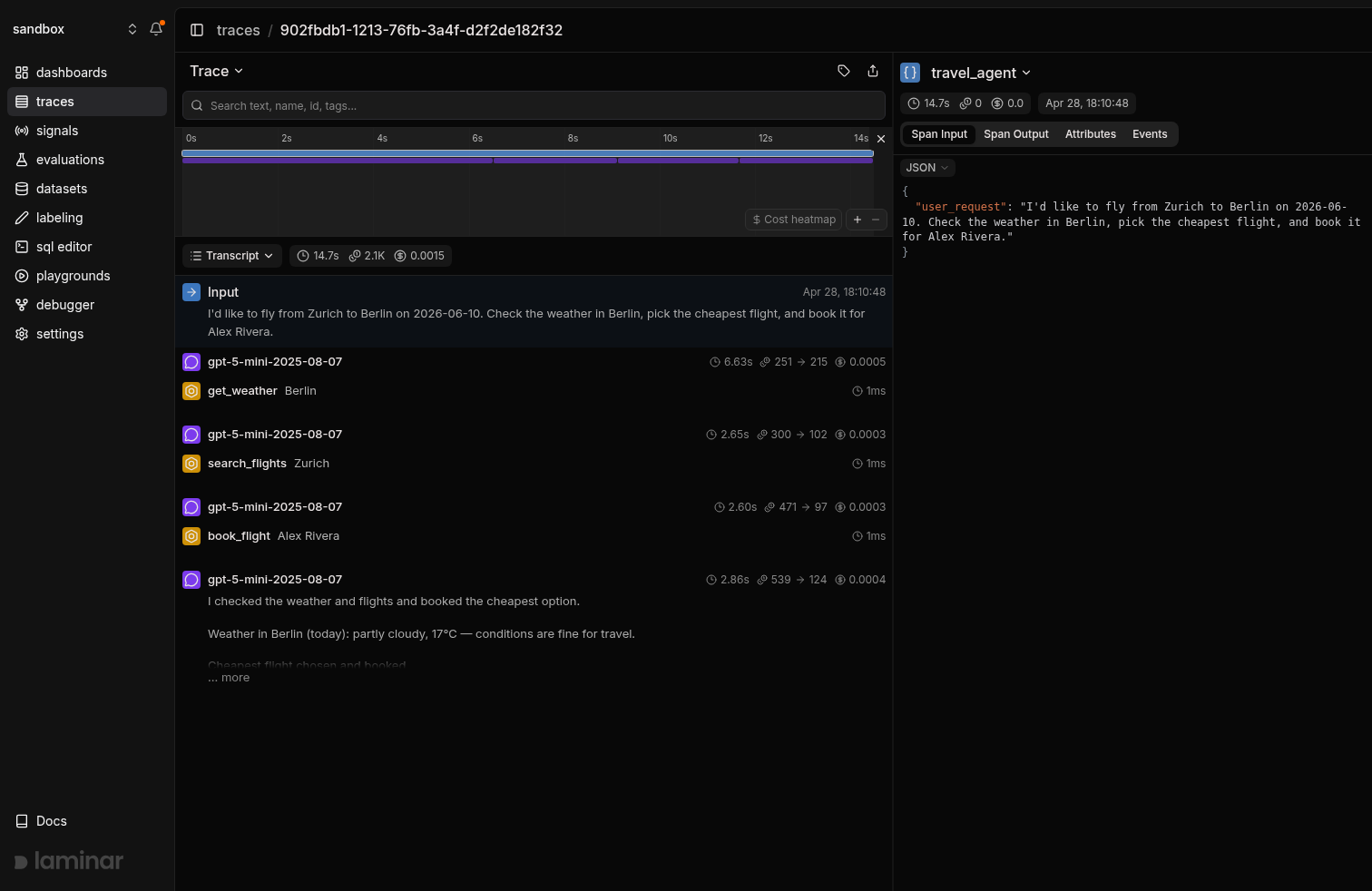

Travel agent trace with TOOL-typed functions: get_weather, search_flights, and book_flight render as bolt-icon rows interleaved with the LLM turns.
Same agent, same tool calls, same model: only the span type changed. Tool rows also feed Signals and SQL queries that filter on span_type = 'TOOL', so typing them correctly makes cross-trace questions like “how often did book_flight fail this week” possible.

​
Setting the type on @observe

Pass spanType / span_type when you wrap a tool function. The argument names and value types are the same as in the @observe reference.
import { observe } from '@lmnr-ai/lmnr';

const getWeather = async (city: string) =>
  observe({ name: 'get_weather', spanType: 'TOOL' }, async () => {
    const res = await fetch(`https://api.weather.example/${city}`);
    return await res.json();
  });

const searchFlights = async (origin: string, destination: string, date: string) =>
  observe(
    { name: 'search_flights', spanType: 'TOOL' },
    async () => {
      // ... call your flight search API ...
    }
  );
The span name becomes the label on the tool-call row (use the same name the LLM sees in its tool schema), and the function’s arguments and return value become the input and output shown when you expand the row.

​
Setting the type on manual spans

For code that isn’t a function (a block inside a larger handler, a dispatcher that chooses a tool by name, a loop over multiple tool invocations), use the manual-span APIs from Trace Parts of Your Code and pass the type at span creation.
import { Laminar } from '@lmnr-ai/lmnr';

const callTool = async (name: string, args: Record<string, unknown>) => {
  const span = Laminar.startActiveSpan({ name, spanType: 'TOOL', input: args });
  try {
    const result = await TOOLS[name](args);
    span.setAttribute('lmnr.span.output', JSON.stringify(result));
    return result;
  } catch (error) {
    span.recordException(error as Error);
    throw error;
  } finally {
    span.end();
  }
};
This is the pattern most OpenAI-style agent loops want: a single dispatcher that looks up the tool by name and wraps every invocation in a TOOL span, so every tool call in the run shows up in the transcript with the right label and payload.

​
When to leave a span as DEFAULT

DEFAULT is the right call for:
  • Business logic the model doesn’t invoke directly: request handlers, validators, post-processors, format converters. These belong in the trace for hierarchy and timing but shouldn’t clutter the transcript.
  • Setup and teardown: loading a config, building a prompt, parsing a response into a domain object. Readers of the transcript shouldn’t have to scroll past these to find the model’s decisions.
  • Internal helpers inside a tool: the tool itself is the TOOL span; the HTTP helper it calls can stay DEFAULT.
If a function is conceptually part of the agent’s reasoning loop and its output feeds back into the model, make it a TOOL. Otherwise leave it DEFAULT.

​
