This quickstart walks through the full Signals loop: generate traces, write a Signal that reads them, run it, and look at the events.
Every new Laminar project ships with a Failure Detector signal pre-created and triggered automatically on traces with more than 1000 tokens. It categorizes issues as tool_error, api_error, logic_error, looping, wrong_tool, timeout, or other. You don’t need to build this one yourself. Open it from the Signals list to see events as soon as your traces start arriving.

​
Prerequisites

  • A Laminar project and LMNR_PROJECT_API_KEY.
  • An agent or LLM app whose traces land in Laminar. The example below uses the Claude Agent SDK to produce traces quickly.

​
1. Generate traces

Any traced application will do. The Claude Agent SDK example below sends a handful of prompts and emits one trace per prompt. Enough to exercise a Signal end-to-end.
import asyncio
import os

from claude_agent_sdk import ClaudeSDKClient
from lmnr import Laminar, observe

Laminar.initialize(project_api_key=os.environ["LMNR_PROJECT_API_KEY"])

PROMPTS = [
    "Give me a one-line Python function to reverse a string.",
    "Explain backpressure in distributed systems in one sentence.",
    "What is the CAP theorem? Answer in one sentence.",
    "Write a single bash command to find all .py files modified in the last day.",
    "Why does TCP use three-way handshake? One sentence.",
    "Give me a one-line idiomatic replacement for `for item in arr: print(item)` in Python.",
    "Explain memoization in one sentence.",
    "What is a REST API? One sentence.",
    "What is an LLM hallucination? One sentence.",
    "One-line SQL to find top 5 users by order count.",
]


@observe(name="quickstart_agent")
async def ask(prompt: str) -> None:
    async with ClaudeSDKClient() as client:
        await client.query(prompt)
        async for _ in client.receive_response():
            pass


async def main() -> None:
    for p in PROMPTS:
        await ask(p)


if __name__ == "__main__":
    asyncio.run(main())
Run it, then refresh the Laminar traces page to confirm the quickstart_agent traces arrive.

​
2. Open Signals

Click Signals in the project sidebar. If this is a new project, the Failure Detector signal is already there, ready to run on any trace over 1000 tokens.

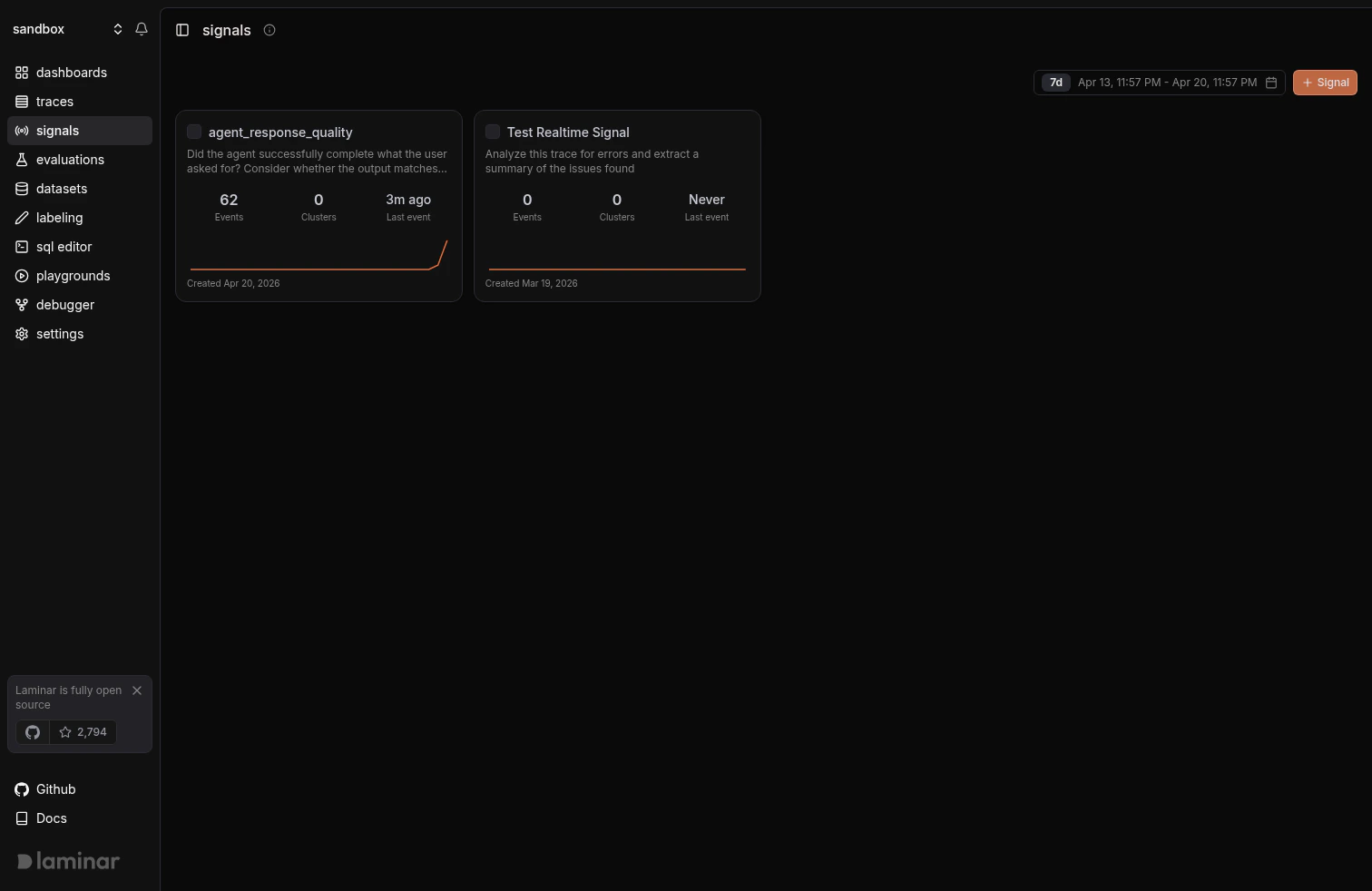

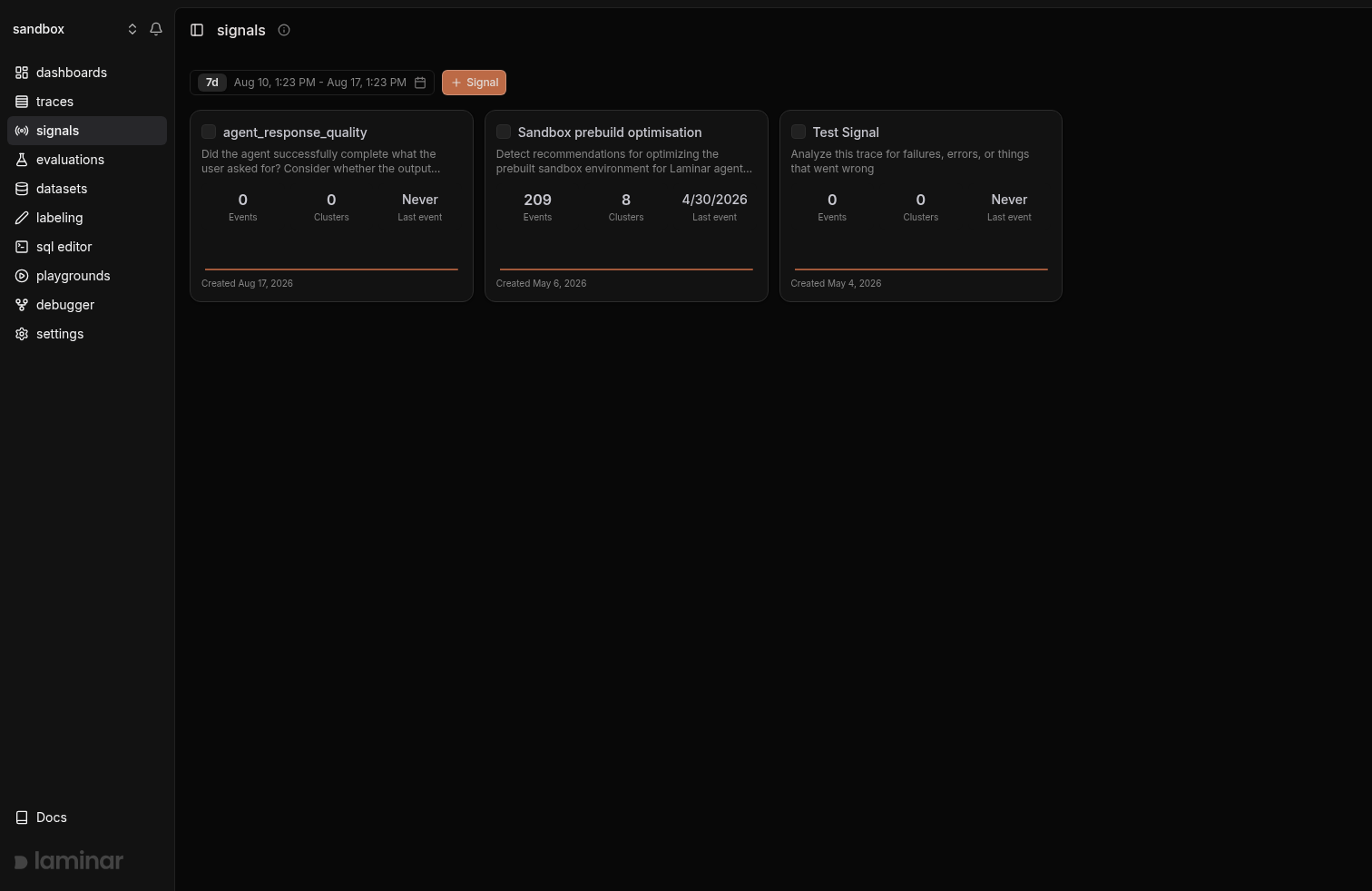

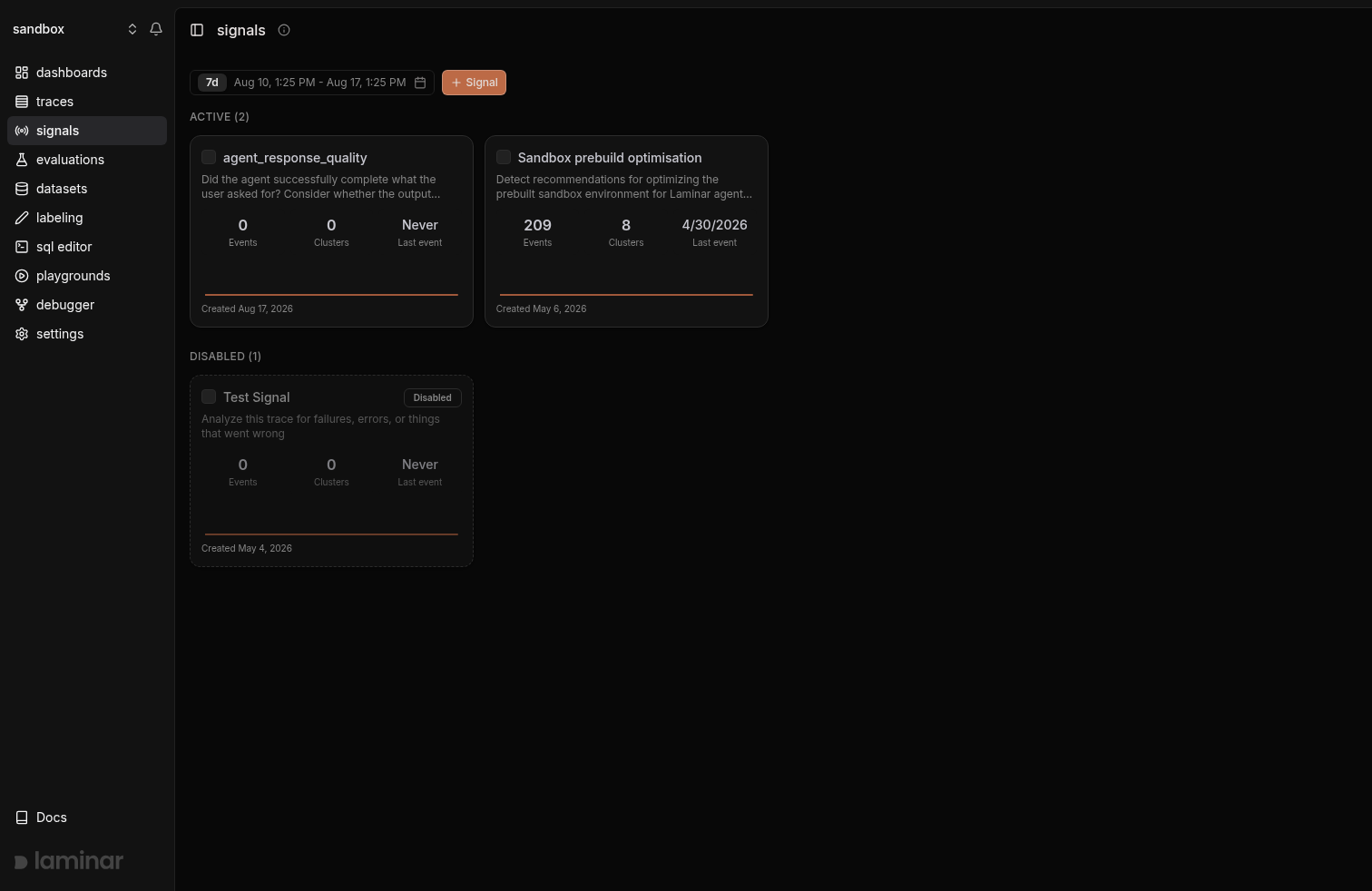

Signals list view with cards for each Signal and recent event counts
To write your own, click Create signal.

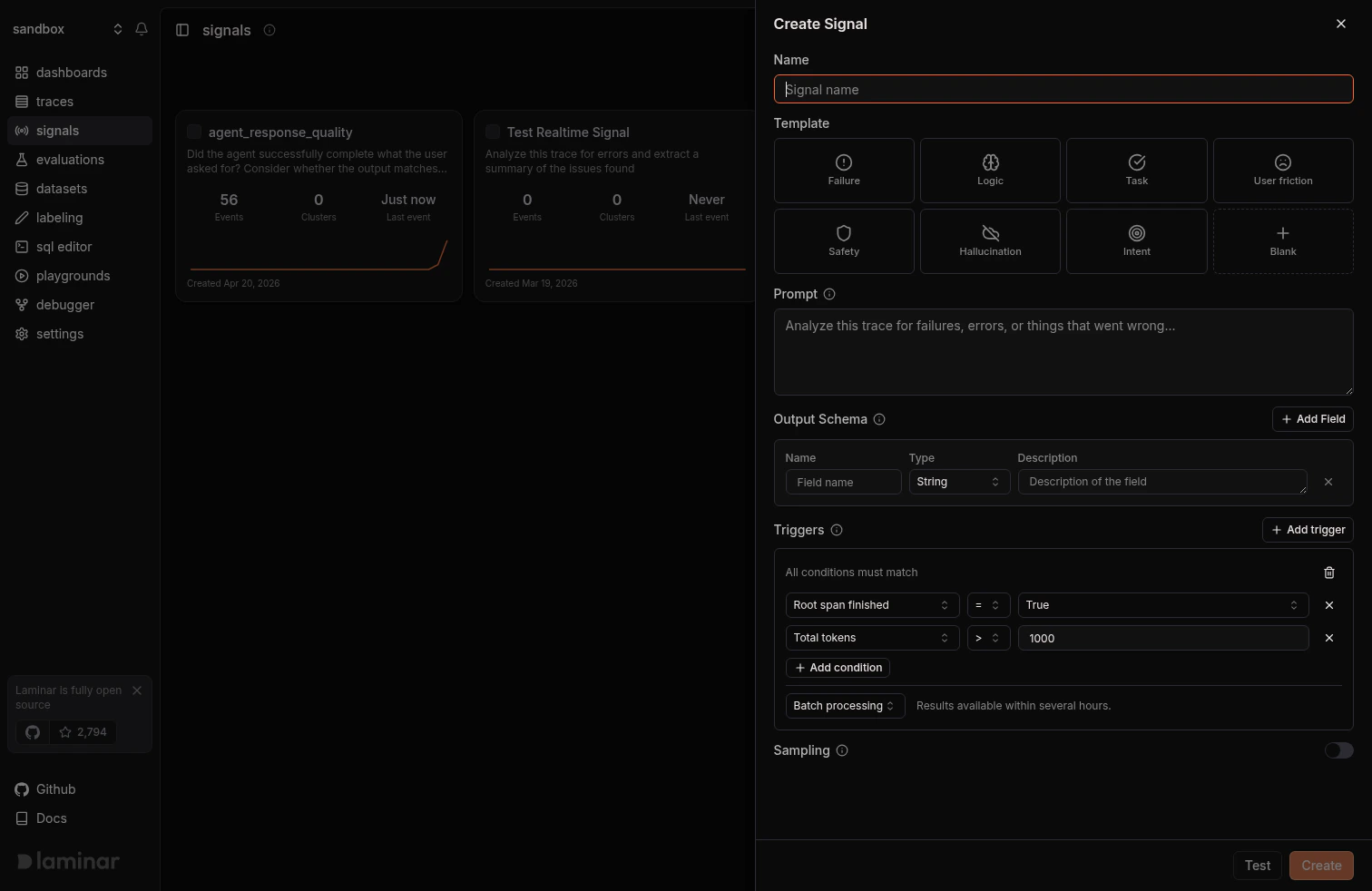

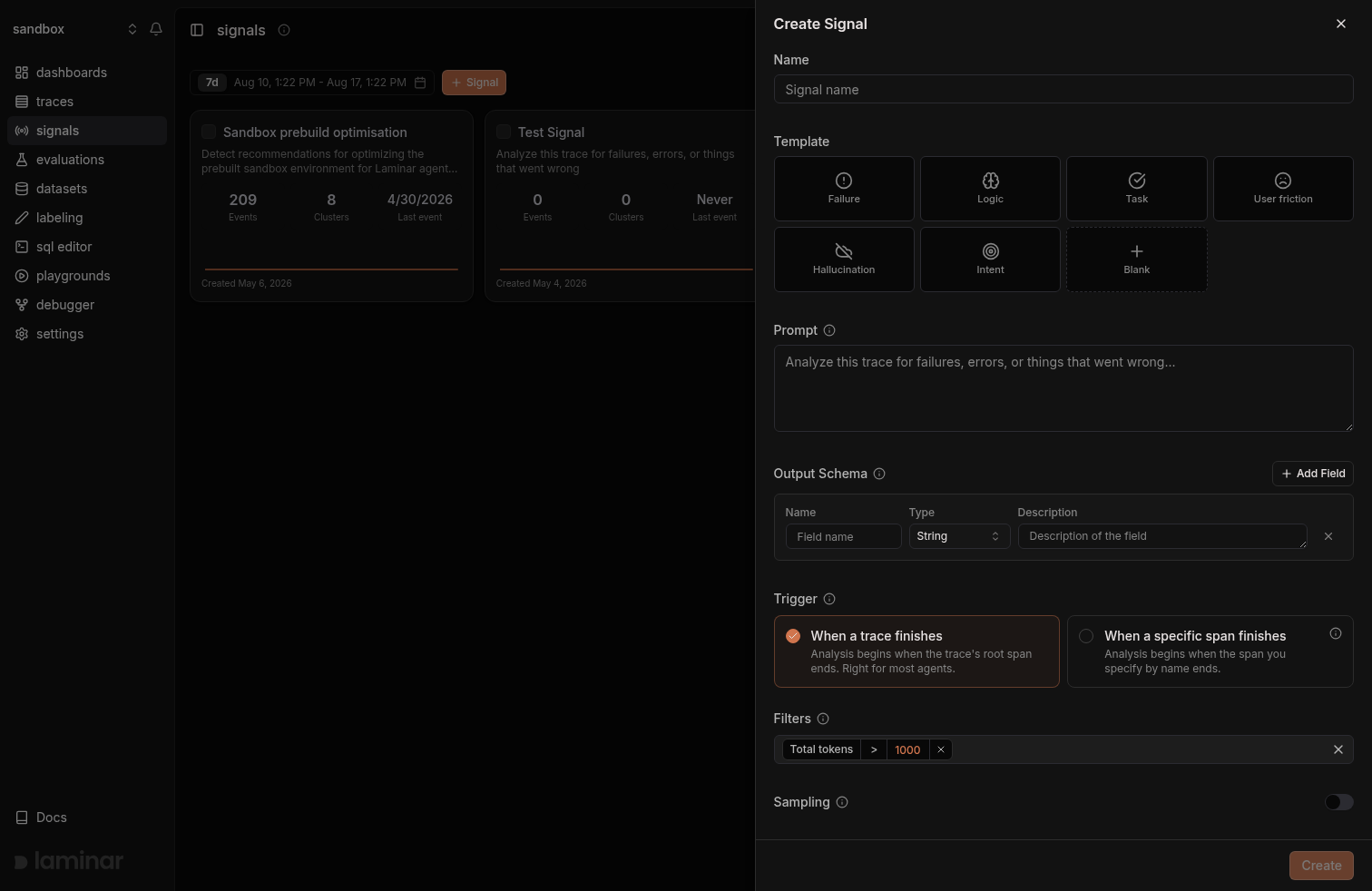

Empty signal creation form

​
3. Write the Signal

Fill in the form:
  1. Name: a stable identifier. Use snake_case or dot-notation (agent_response_quality, checkout.completed). The name is what you filter, alert, and query by.
  2. Template (optional): pick a starting point. Laminar ships templates for task completion, user friction, safety, hallucination, and intent. Templates prefill the prompt and schema; edit both before saving.
  3. Prompt: describe what the Signal should detect or extract from the trace. Be concrete. “The agent answered the user’s question correctly and completely” is a better prompt than “good response”.
  4. Structured output: define the JSON schema for the payload. Keep fields small and stable; they become filterable columns on signal_events.
  5. Triggers: toggle on to run this Signal automatically on new traces. Add filters to narrow which traces it runs against.
  6. Sampling (optional): cap how many matching traces the trigger consumes per time window. Useful when a high-volume filter would otherwise fan out across every trace.

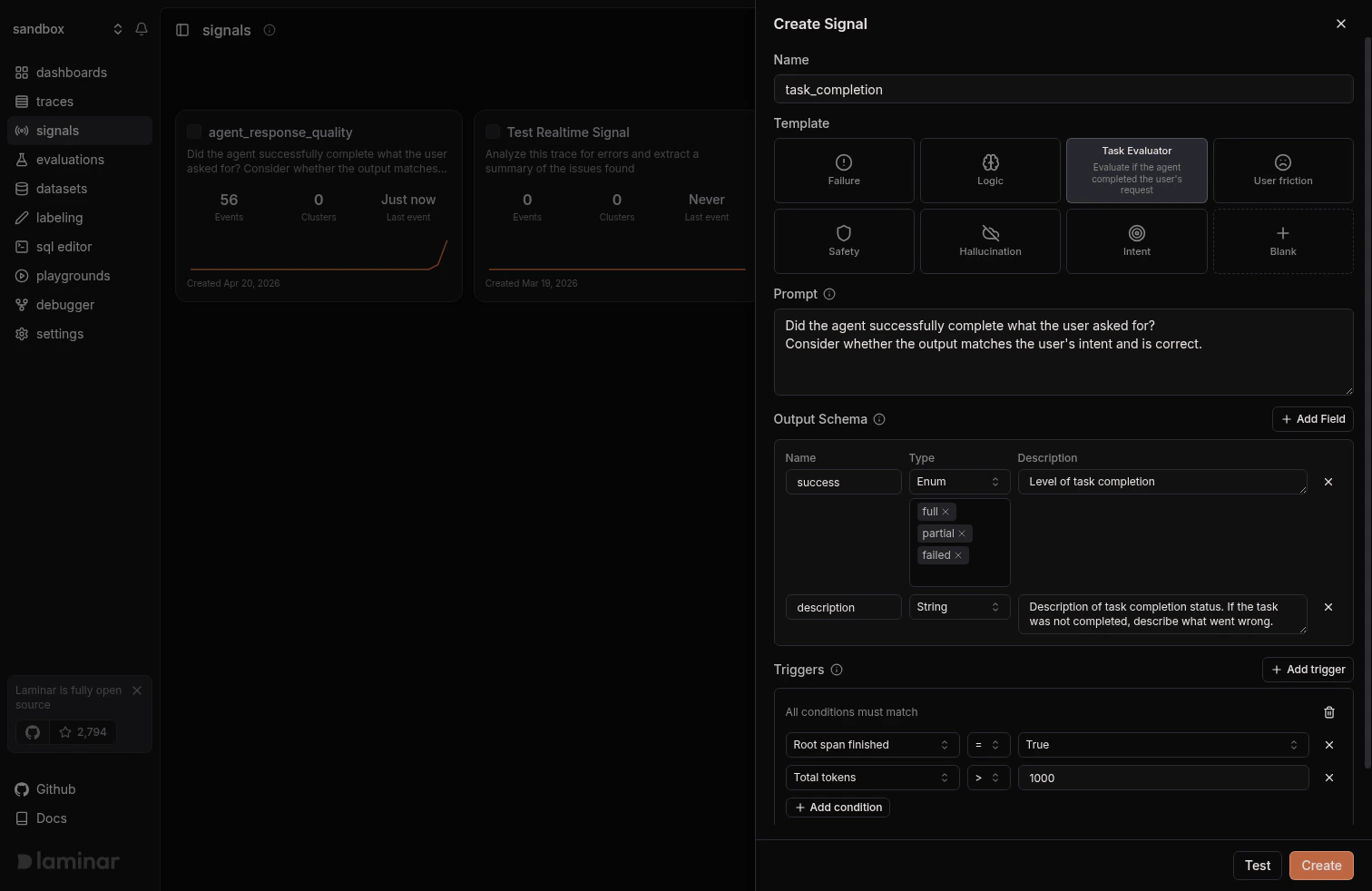

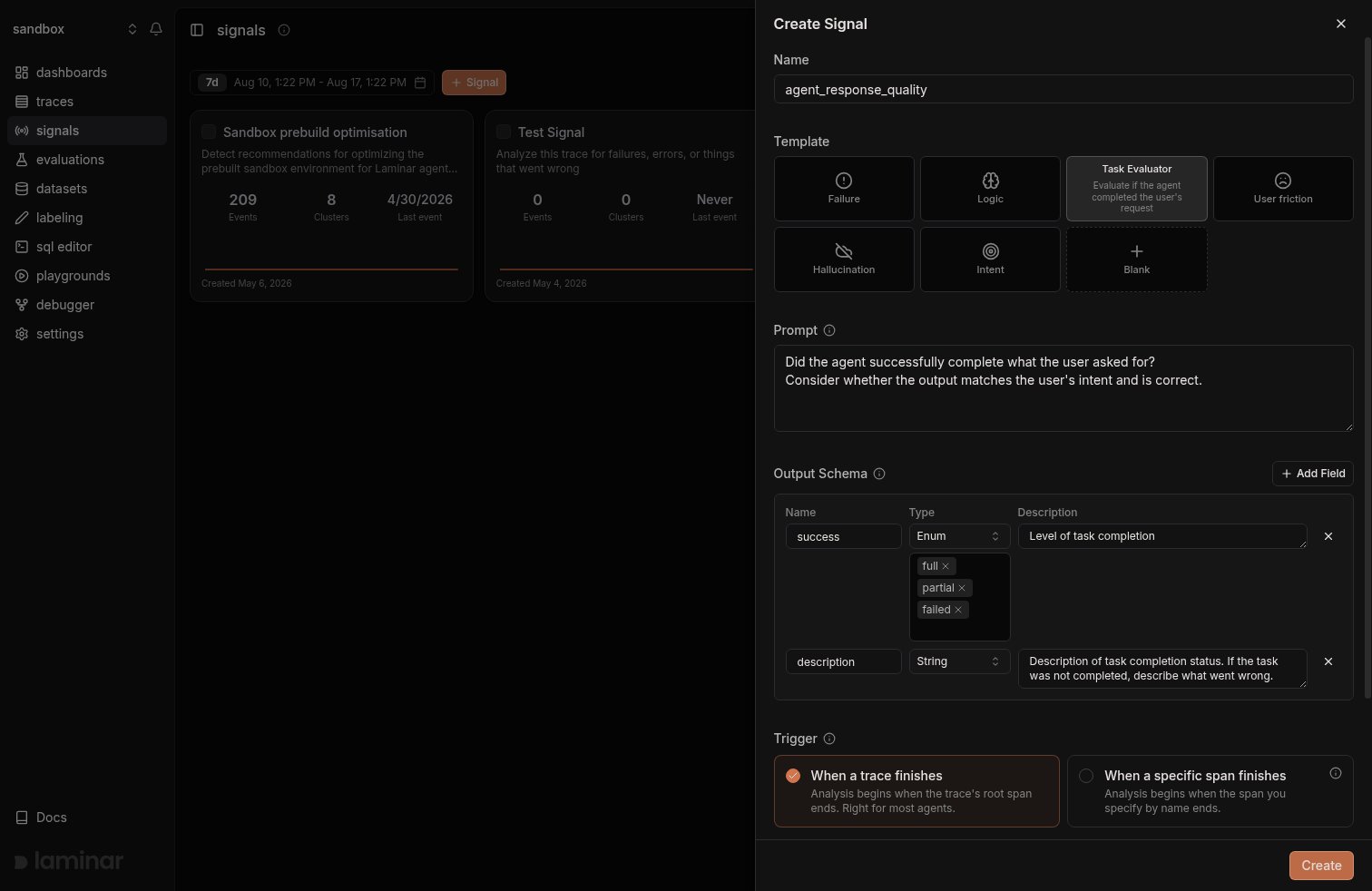

Create signal form populated with name, prompt, schema fields, and a realtime trigger

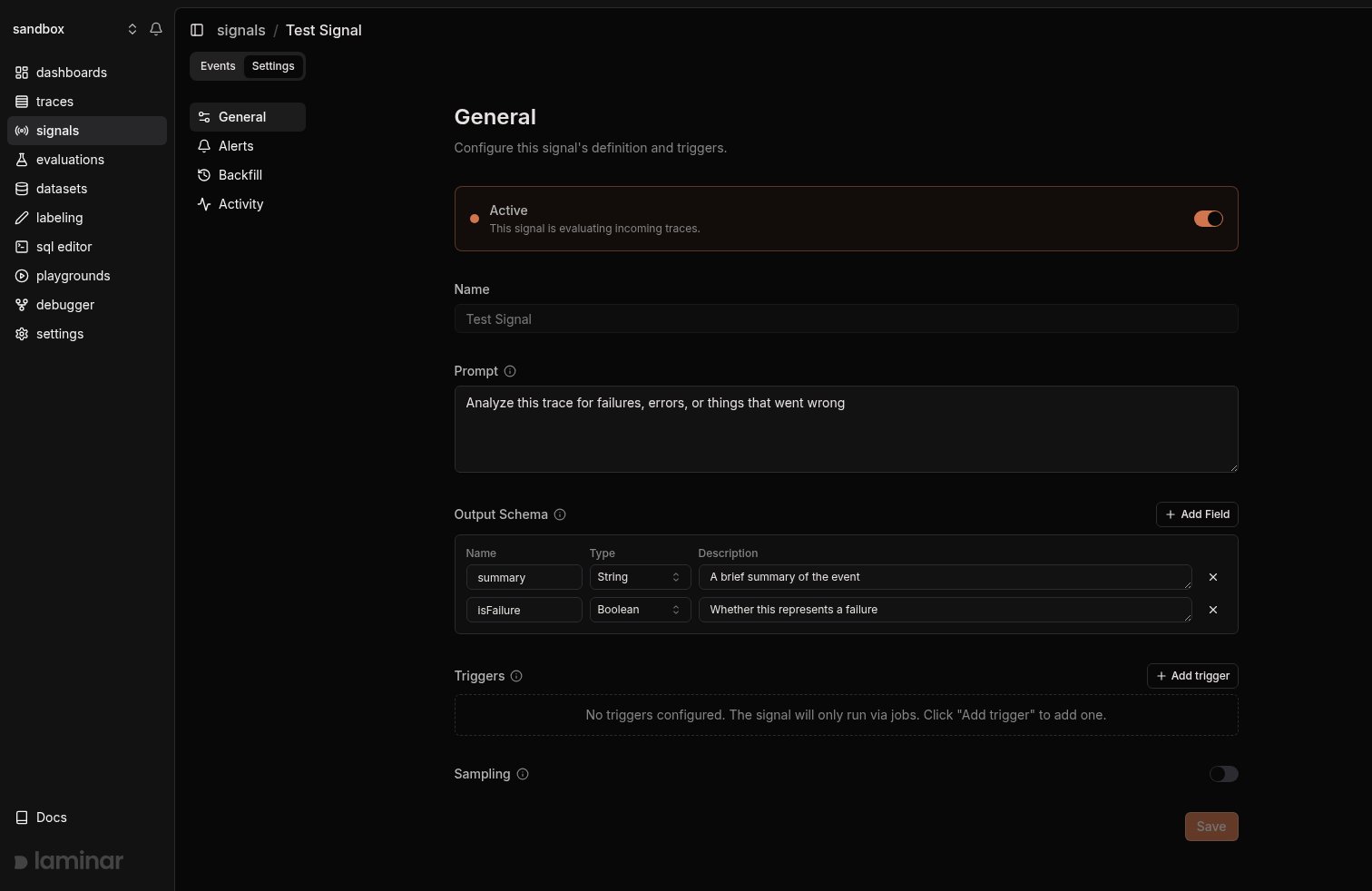

Click Create. The Signal is live from this point on: any configured Trigger starts processing new traces immediately.
Creating a Signal automatically creates a Critical-severity event alert that posts to the in-app notification center. Open Project Settings > Alerts to route it to Slack or email, change the severity, or manage notification frequency. See Alerts.

​
4. Run the Signal: Triggers and Jobs

A Signal can run in two modes, independent of each other.

​
Triggers (live)

Triggers run the Signal automatically on new traces that match your filter set. This is what feeds live dashboards and Alerts.

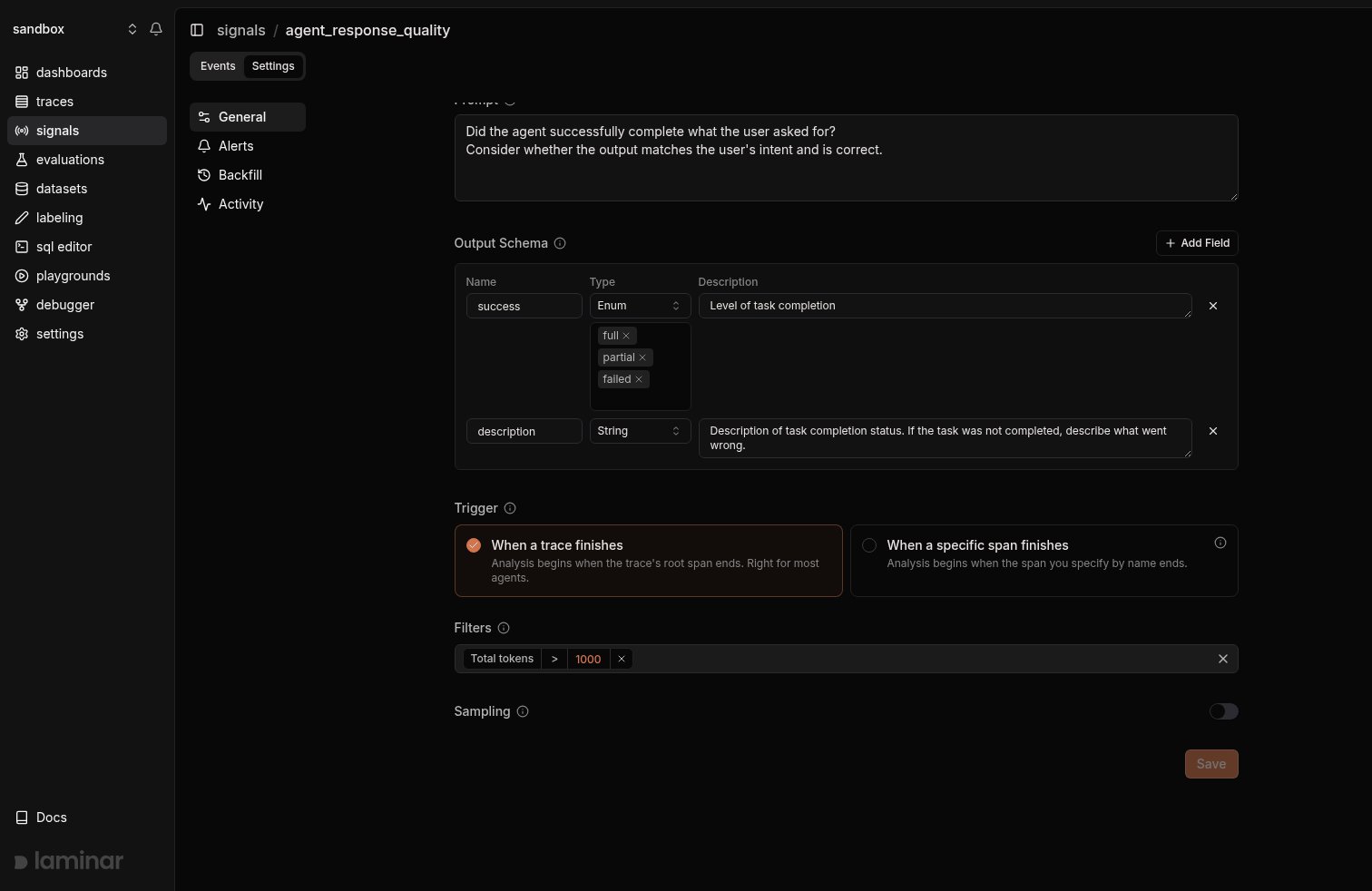

  • Open the Signal’s Triggers tab and click Add Trigger (or configure Triggers while creating the Signal).
  • Add one or more filters. All filters are AND-combined.
  • Choose a mode:
    • Batch processes matching traces in micro-batches after they finish. Lower cost, slightly higher latency.
    • Realtime processes each matching trace as soon as it completes. Use this when you want Alerts to fire within seconds.
  • Save. Every matching trace now produces a Run; runs that detect the Signal produce events.

​
Jobs (backfill)

Use Jobs to run a Signal across historical traces, for example to evaluate a freshly-created Signal over the last 24 hours of traffic.

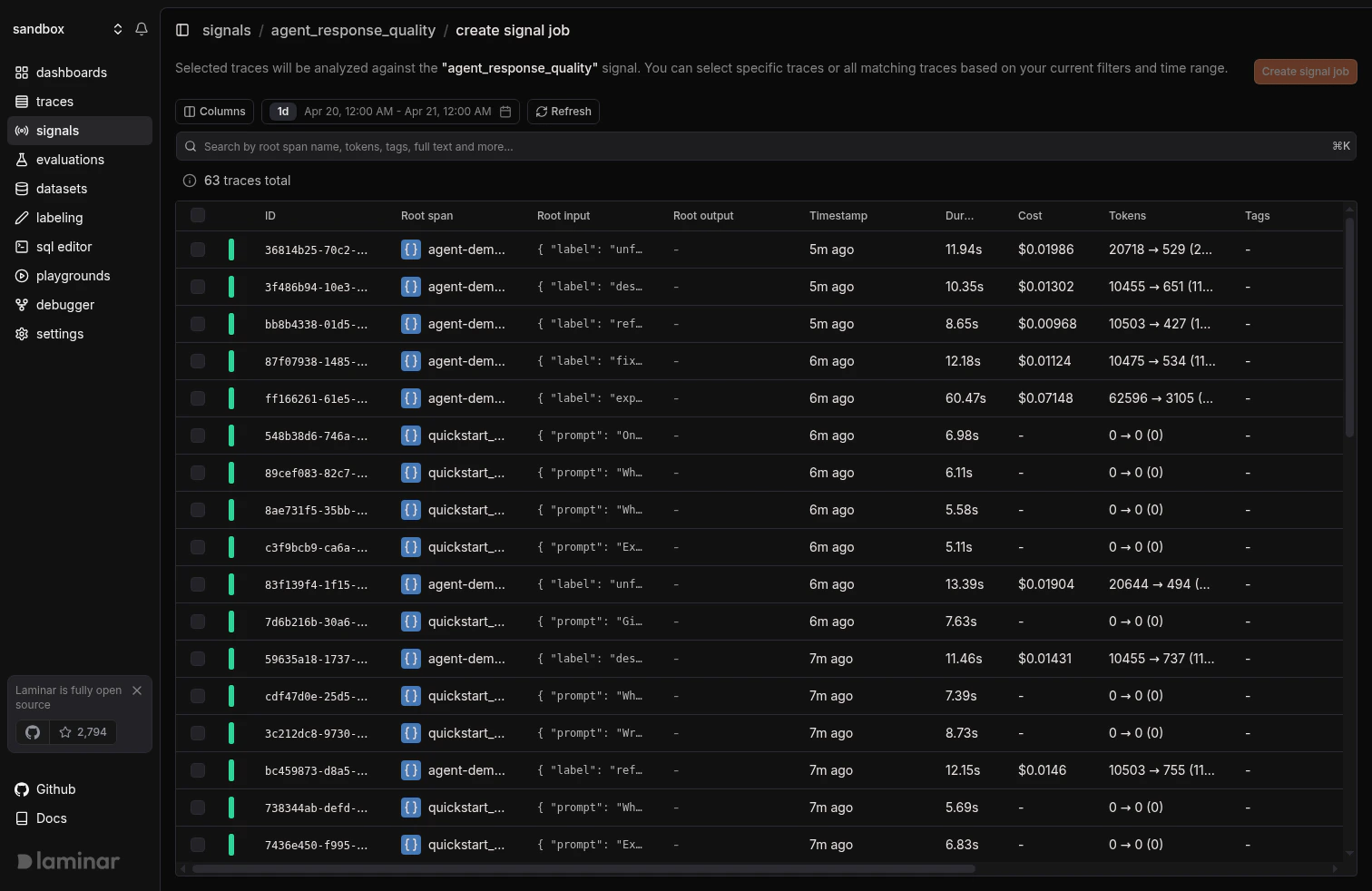

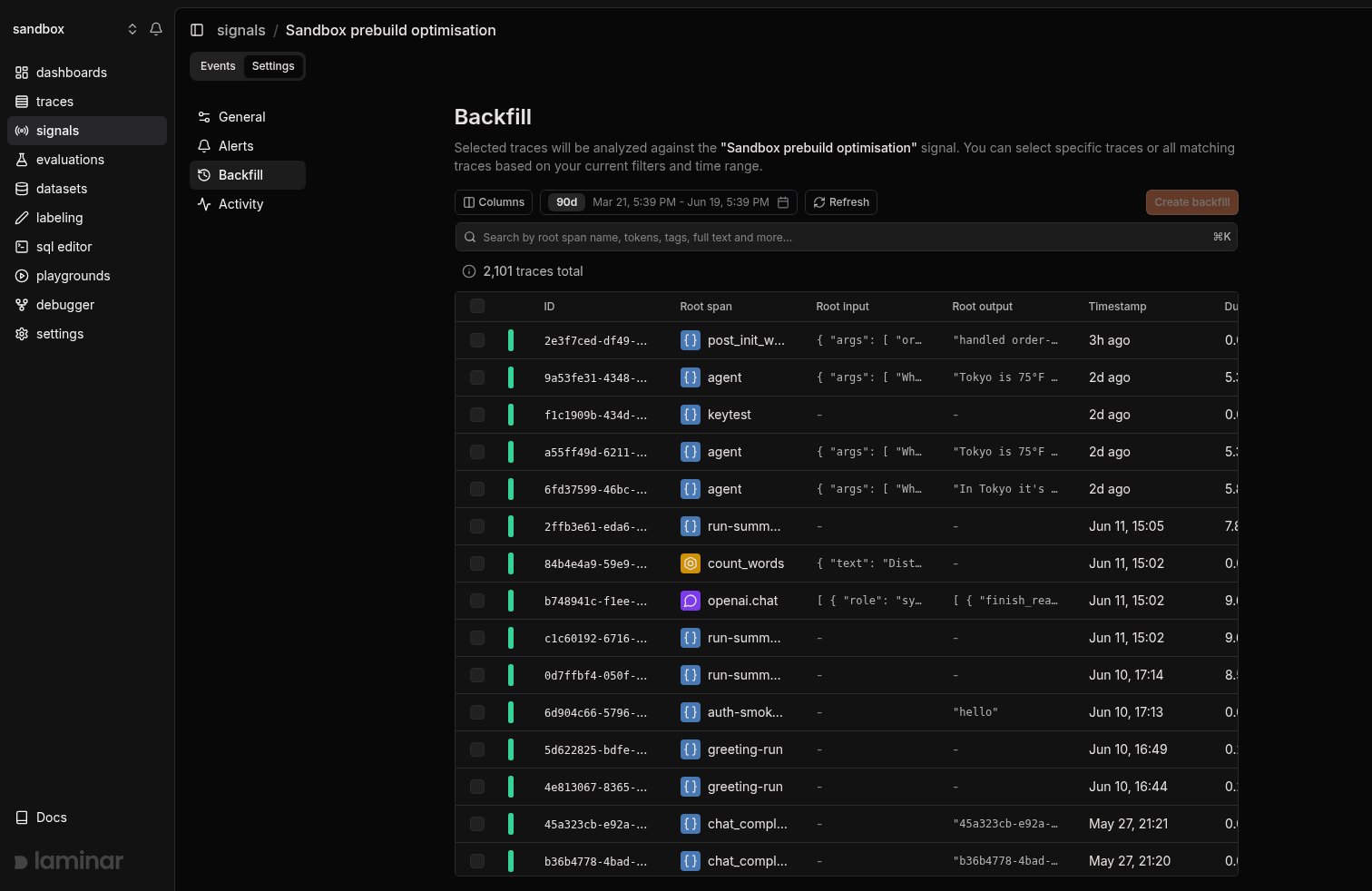

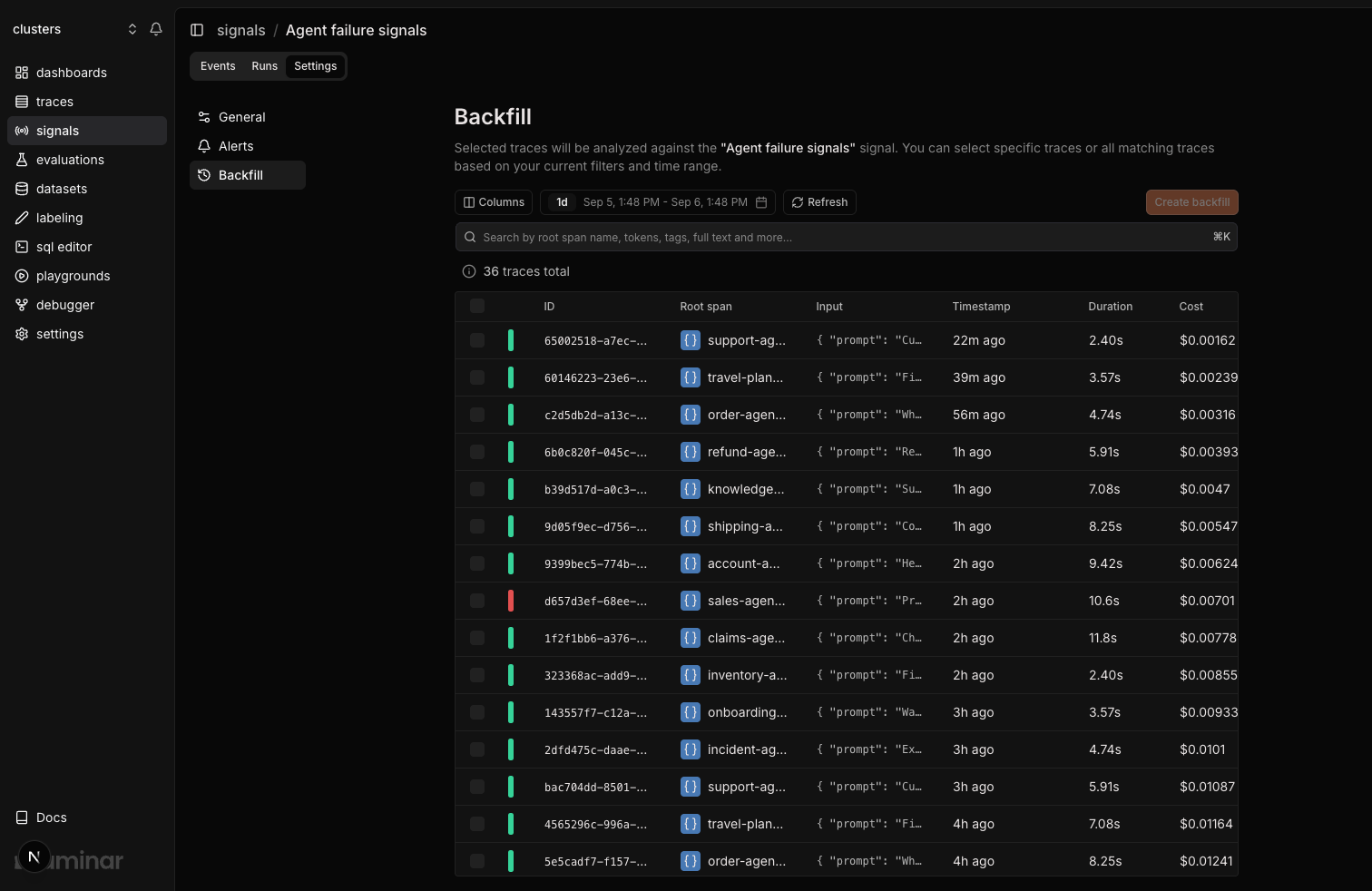

Create signal job page with trace selection, filters, and trace table
  1. Open the Signal’s Jobs tab.
  2. Click Create Job.
  3. Pick a time range (defaults to the last 24 hours).
  4. Optionally narrow with filters or search.
  5. Choose specific traces or all traces matching your filters.
  6. Click Create signal job. The job enqueues one Run per trace.
Signal Jobs tab showing empty state before the first backfill

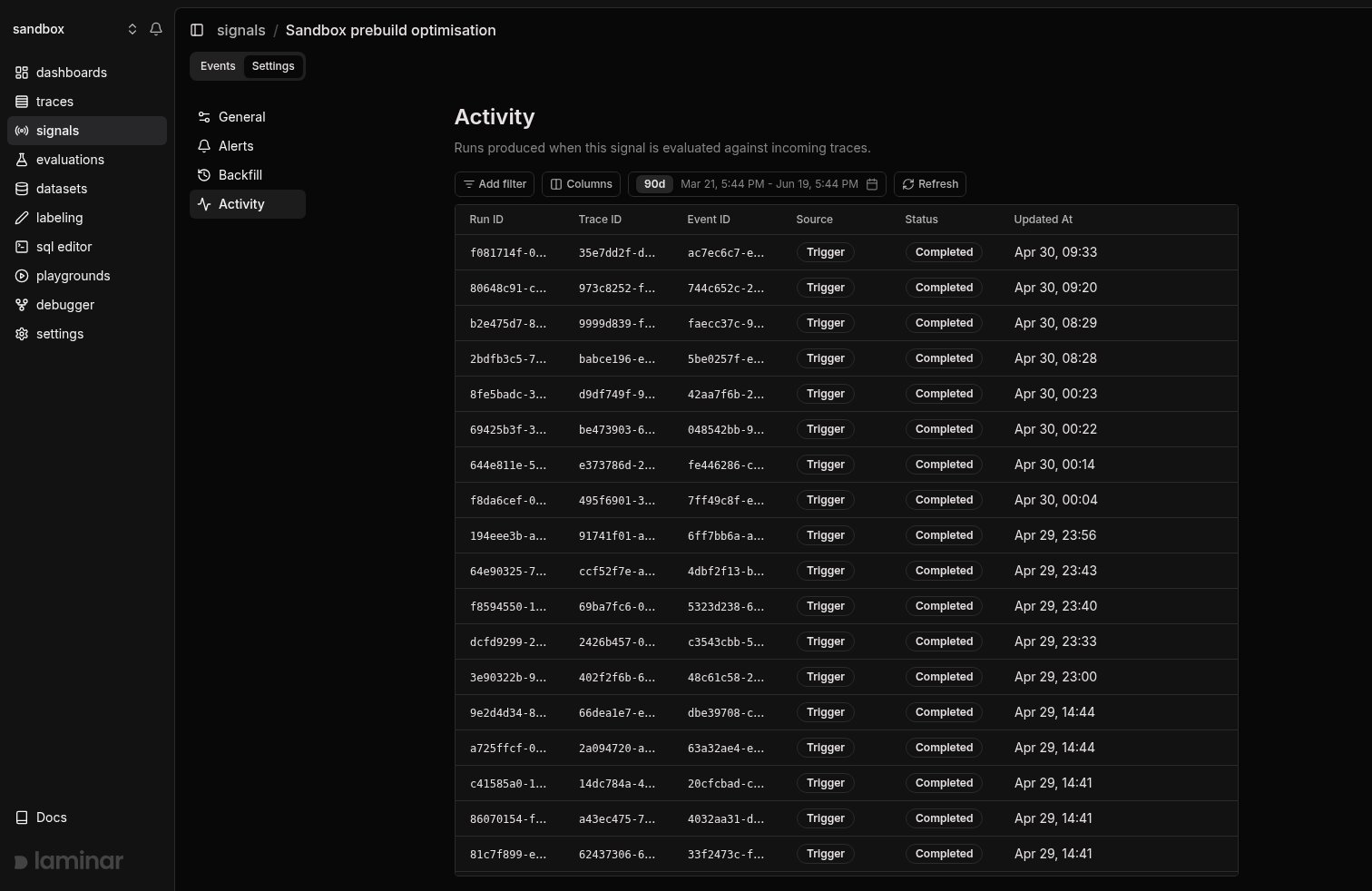

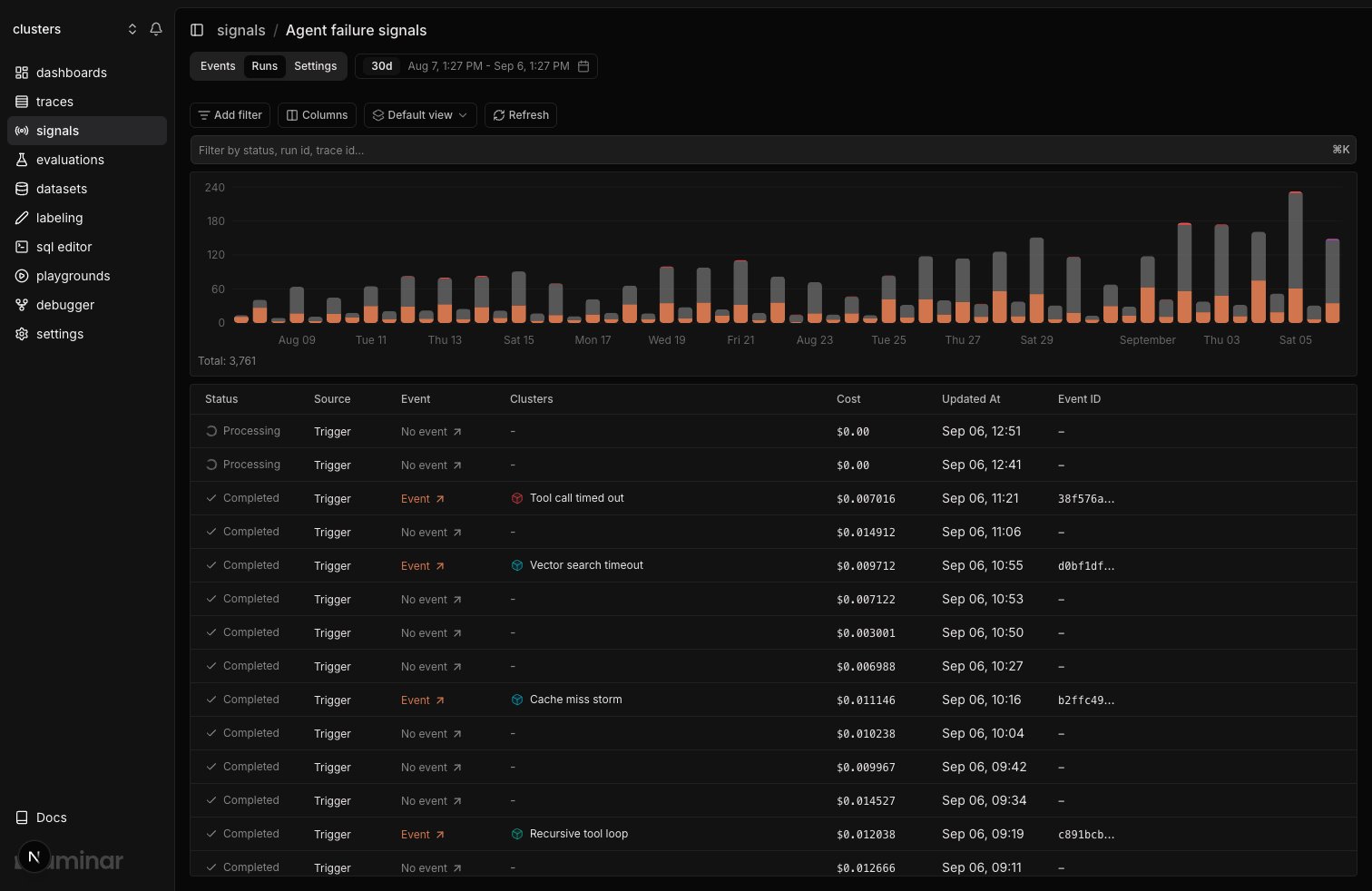

Runs appear in the Runs tab with a status (Pending, Completed, Failed). Each Run that detects the Signal links to the resulting event in the Events tab.

​
5. Inspect events

Open the Signal detail page and switch to the Events tab. Each row is one detected event, linked back to the trace that produced it.

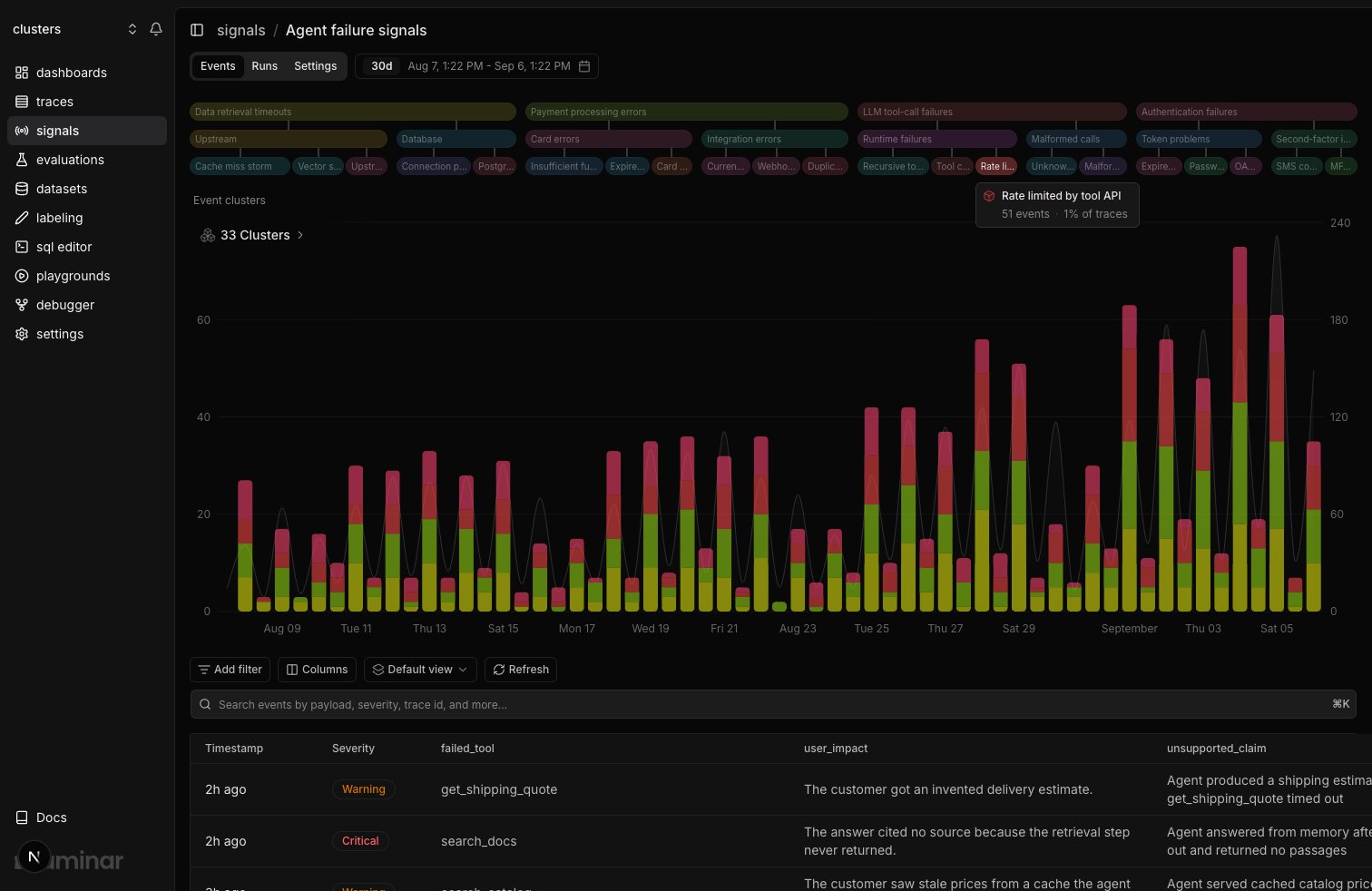

Signal events view with chart, event list, and cluster sidebar
From here you can:
  • Filter events by any field you defined in the structured output schema.
  • Click any row to open the corresponding trace.
  • Use the Clusters panel to see similar events grouped together. See Clusters.
  • Query the raw events in the SQL Editor via the signal_events table.

​
Querying signal_events in SQL

signal_events stores each event’s payload as a JSON string. The UI’s payload filter uses simpleJSONExtractString / simpleJSONExtractRaw, so you can mirror the same behavior in SQL.

​
Quick payload filter (UI-equivalent)

SELECT
    timestamp,
    trace_id,
    name,
    payload
FROM signal_events
WHERE name = 'checkout.completed'
  AND (
    simpleJSONExtractString(payload, 'error_type') = 'timeout'
    OR simpleJSONExtractRaw(payload, 'error_type') = 'timeout'
  )
  AND timestamp > now() - INTERVAL 7 DAY
ORDER BY timestamp DESC
LIMIT 200

​
Numeric comparisons with JSONExtractFloat

SELECT
    timestamp,
    trace_id,
    JSONExtractFloat(payload, 'score') AS score,
    JSONExtractFloat(payload, 'latency_ms') AS latency_ms
FROM signal_events
WHERE name = 'agent_response_quality'
  AND JSONExtractFloat(payload, 'score') >= 0.9
  AND timestamp > now() - INTERVAL 30 DAY
ORDER BY score DESC

​
Typed or nested fields with JSONExtract

SELECT
    timestamp,
    trace_id,
    JSONExtract(payload, 'summary', 'String') AS summary,
    JSONExtract(payload, 'metrics', 'confidence', 'Float64') AS confidence,
    JSONExtract(payload, 'labels', 'Array(String)') AS labels
FROM signal_events
WHERE name = 'support.intent_classification'
  AND timestamp > now() - INTERVAL 14 DAY
ORDER BY timestamp DESC
LIMIT 100

​
Next steps

Clusters

Group similar events into recurring patterns.

Alerts

Send Slack or email notifications on new signal events.
